Life’s too short to blend in. In a sea of sameness defined by people and bikes that fit the mold, there are some who choose to ride…different.

It’s a perspective where transportation gives way to transformation. Where shiny, new things aren’t the finished product, but a raw ingredient. Where stickers and graffiti are seen as an improvement. And where scratches don’t ruin the surface, but instead become the grooves of a record to be replayed.

This is Expression of Self

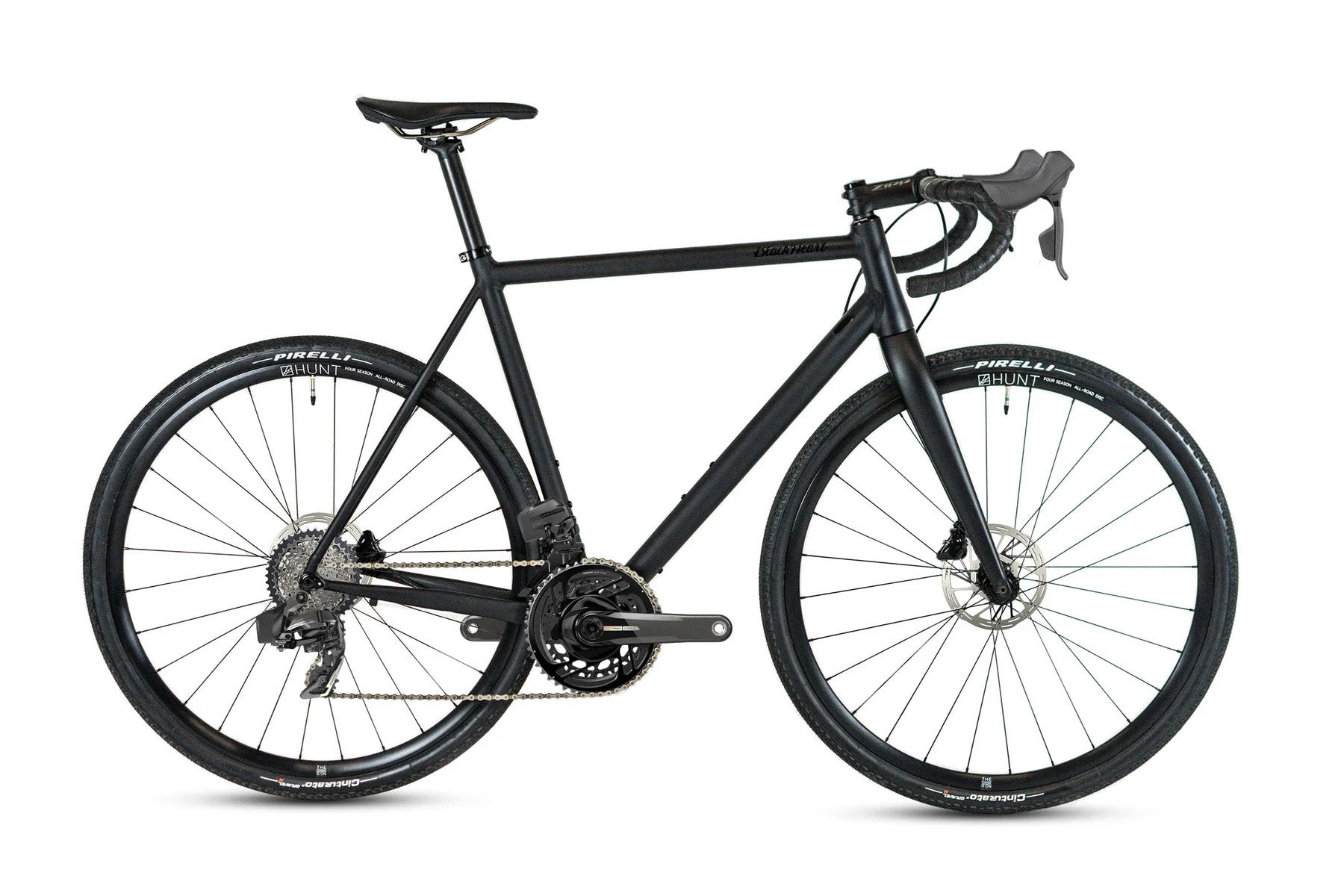

Allroad AL
Allroad AL
Allroad AL
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
Allroad AL
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
allroad al aluminum road bike blackheart bike company
Allroad AL
Allroad AL
Allroad AL
Allroad AL
Allroad AL

Allroad AL

$1,849.00

Version
Size

Version 2

  • Sizes 49, 52, 54, 56 PREORDER for July 2024
  • T47 threaded bottom bracket
  • SRAM UDH rear derailleur hanger
  • Custom frame and logo paint included
  • Custom fork paint available for $200

Version 1

  • All sizes IN STOCK
  • BSA threaded bottom bracket
  • BlackHeart alloy rear derailleur hanger
  • Custom frame and logo paint included
  • Custom fork paint available for $200

Delivery

  • All in stock framesets ship within 1 week.
  • Full builds are built to order in California  and ship within 4 weeks.
  • These timelines are valid for in stock framesets and/or 3rd party vendor parts. For orders that include out of stock framesets and/or parts a custom timeline will be provided.

    Custom Paint Program

    • We offer custom frame, fork, and logo paint using Cerakote, an ultra-thin, highly durable, heat-cured ceramic paint.
    • Select from any of the H-Series colors.
    • Custom paint takes approximately 3 weeks.

    Details

    • Framesets include frame, fork, headset, seatpost, seatpost collar, thru axles, and spare rear derailleur hanger.

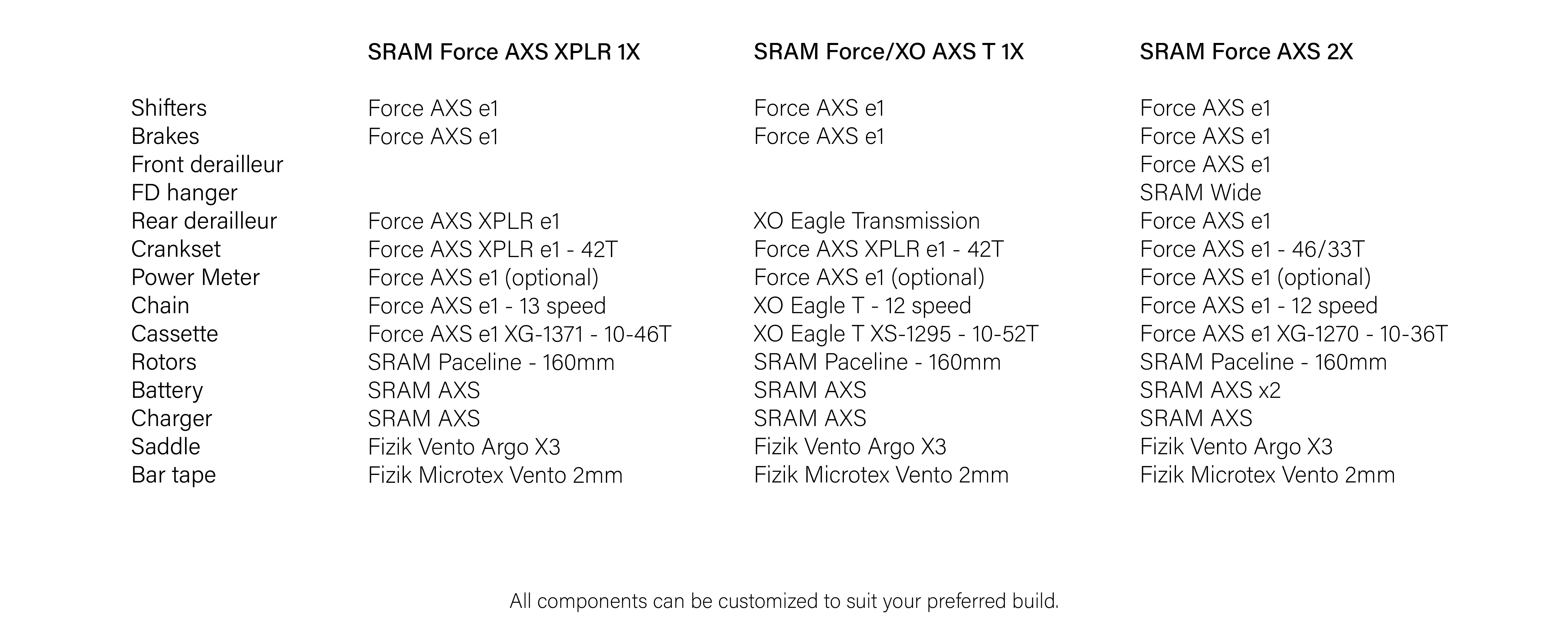

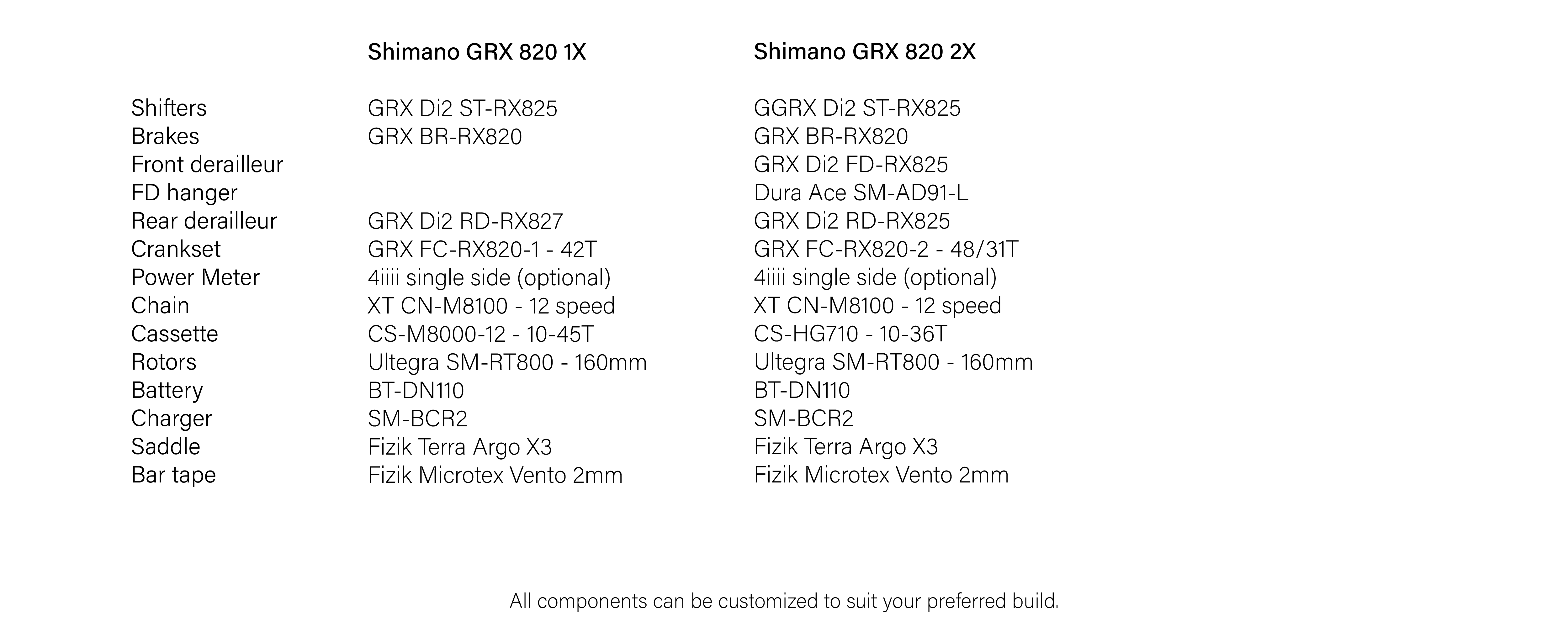

    • *Wheelset 2 price includes wheels, tires, cassette, and rotors matching selected groupset.
    • †Power meter upgrade must match groupset selected.

      Custom Paint

      Custom frame and logo paint included in the price.
      Custom fork paint available for +$200.
      Preview the most popular color combinations below.
      Click Here to see all available colors.

      Videos

      Review

      By The Bike Sauce

      Features

      Stamp of approval

      "The perfect bike for a whole lot of riders. Cycling needs more bikes like this." – Bicycling Magazine

      Two bikes in one

      One bike that looks like a road bike, handles like a road bike, while having the capability of a gravel bike – simply by switching wheels.

      Timeless design

      With a clean, classic aesthetic and perfect proportions this bike will never go out of style.

      Snappy ride

      Premium 7005 double-butted aluminum tubing and curved seatstays give a little flex and spring while being more durable than carbon and 100% recyclable.

      Future proof

      Electronic and Mechanical compatible, threaded T47 (V2) / BSA (V1) bb, a round 31.6mm seatpost, and SRAM UDH (V2) means easy maintenance and no proprietary parts to limit your options.

      Perfect fit

      8 sizes fit you better, from ~5'0" to ~6'7"

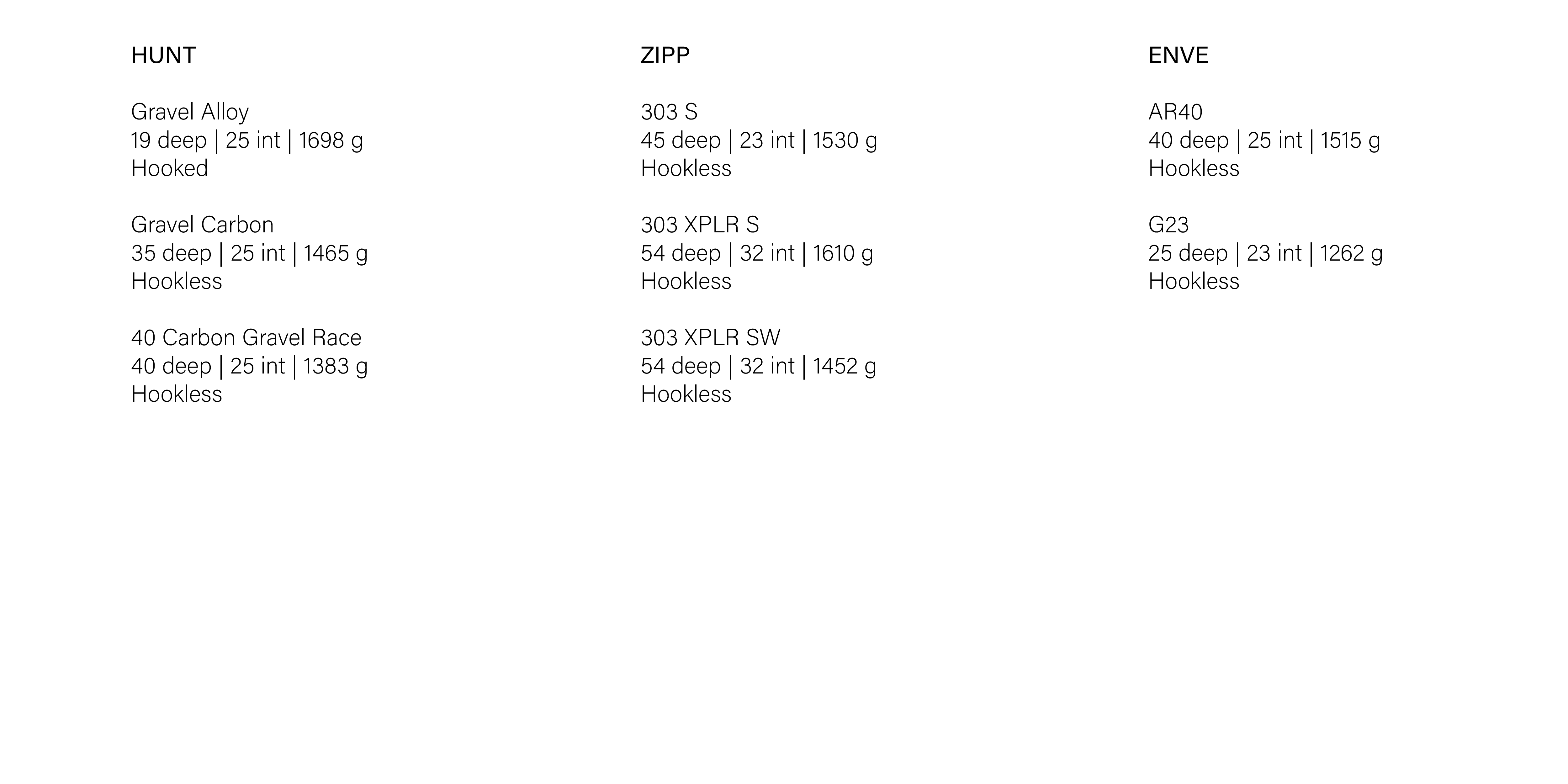

      Wheel options

      Specs

      BlackHeart double butted 7005 aluminum frame
      Wolf Tooth seatpost clamp
      Wolf Tooth Premium IS42/IS52 headset
      Wolf Tooth 12mm (1.5 x 164mm) thru axle
      BSA english threaded bottom bracket
      Di2 ready
      Third water bottle cage mount
      34.9mm front derailleur hanger size
      Max chainring 50/35 double, 44 single
      Max 700c tires = 40mm
      Max 650b tires = 50mm

      BlackHeart Carbon
      700x42 / 650x50 tire clearance
      47mm offset
      400mm axle to crown
      Wolf Tooth thru axle
      480 grams

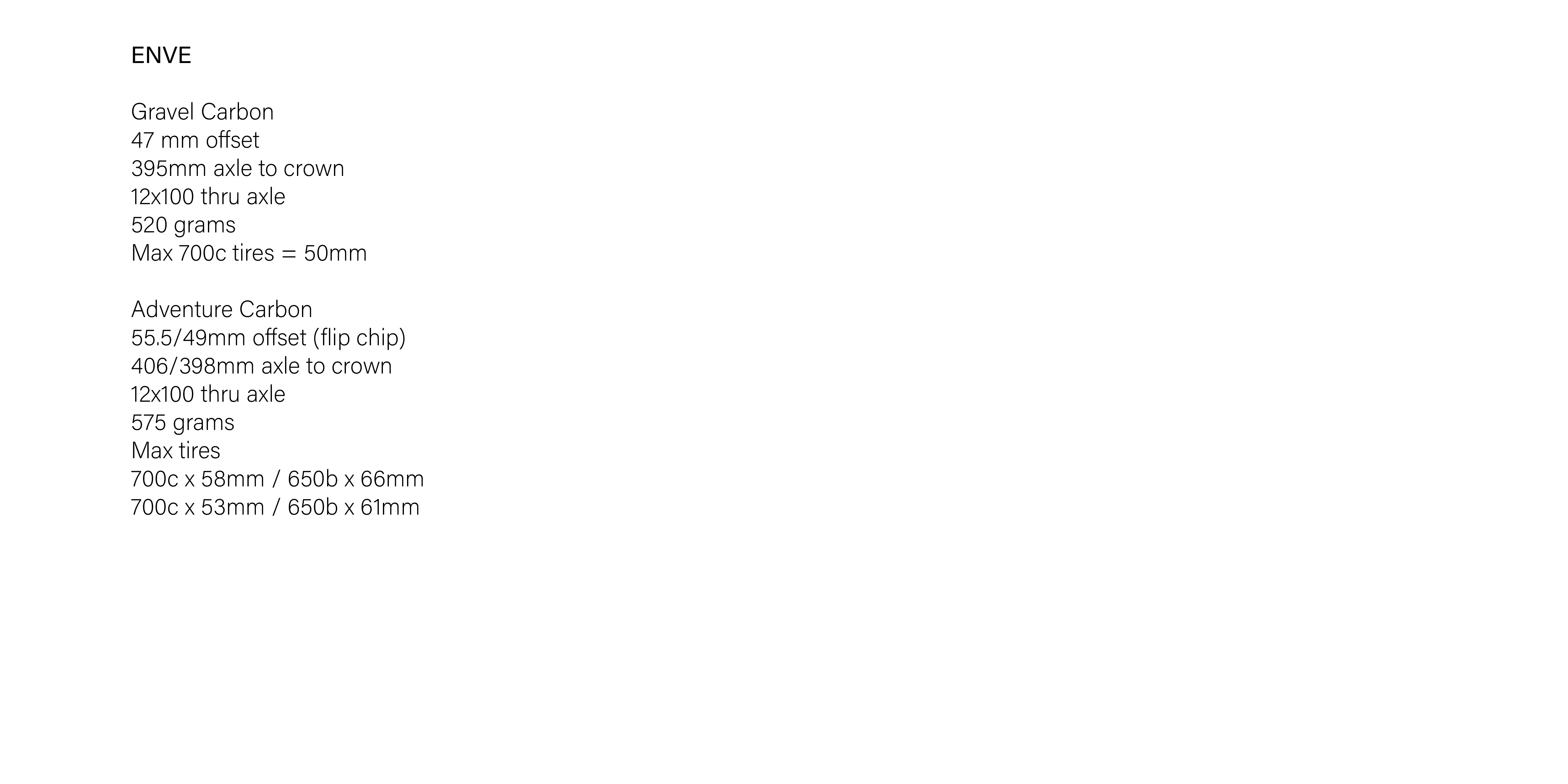

      Enve Gravel Carbon
      700x50 / 650x57 tire clearance
      47mm offset
      395mm axle to crown
      Enve thru axle
      520 grams

      Enve Adventure Carbon
      Auxiliary rack mounts
      700x53 / 650x61 tire clearance
      49 / 55.5 mm offset
      398mm axle to crown
      Enve thru axle
      575 grams

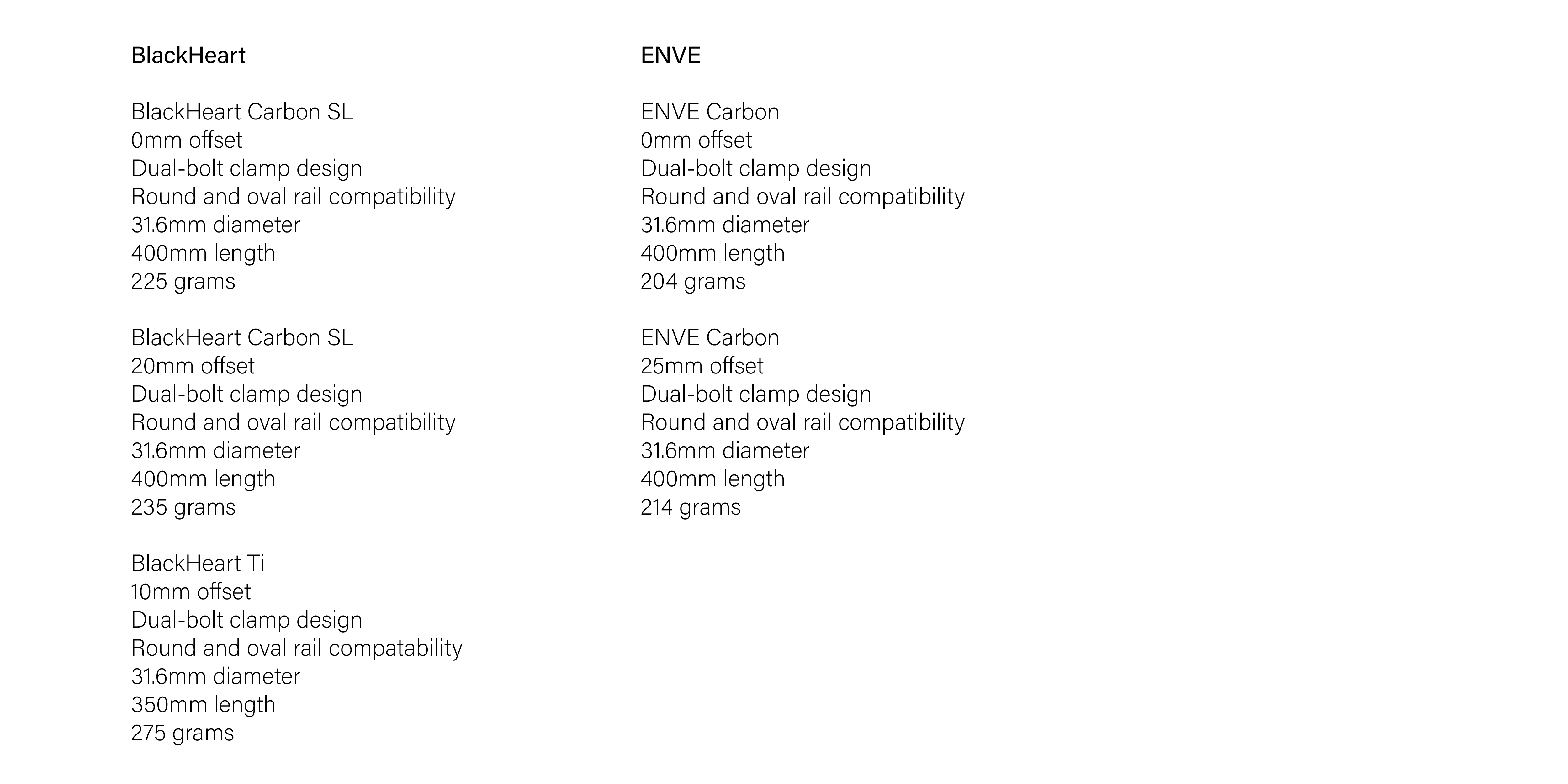

      BlackHeart carbon seatpost
      Dual-bolt clamp design
      10mm offset

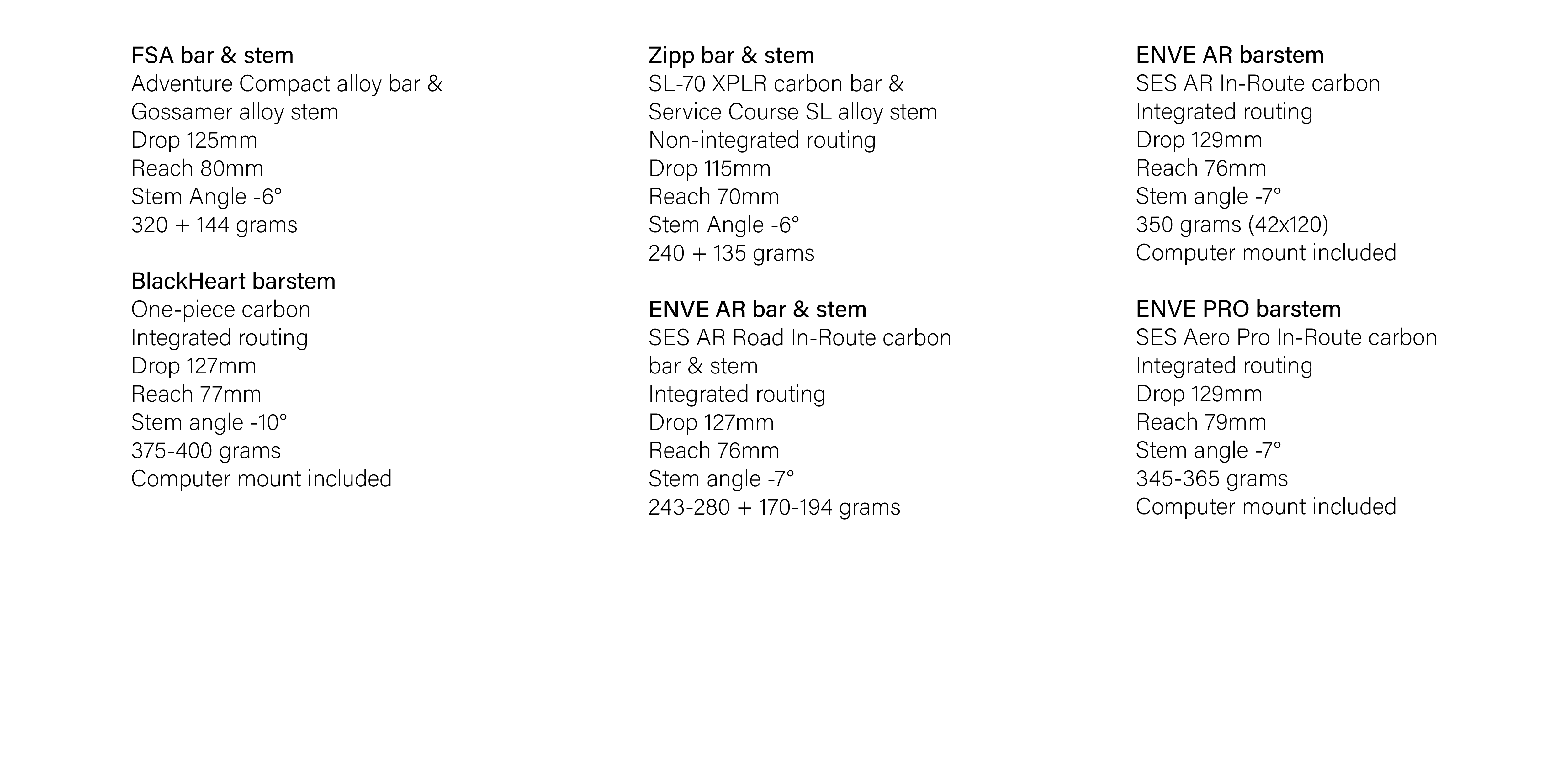

      FSA
      FSA Adventure Compact alloy handlebar
      External routing
      Width (Tops c-to-c) = 40/42/44cm
      Drop = 125mm
      Reach = 80mm
      12 degree flare
      Zipp Service Course SL stem
      Length = 80-120mm
      Stem Angle = -6°
      135 grams

      Zipp
      Zipp ZL-70 XPLR alloy handlebar
      External routing
      Width (Tops c-to-c) = 40/42/44cm
      Drop = 115mm
      Reach = 70mm
      5 degree flare / 11 degree outsweep
      260 grams
      Zipp Service Course SL stem
      Length = 80-120mm
      Stem Angle = -6°
      135 grams

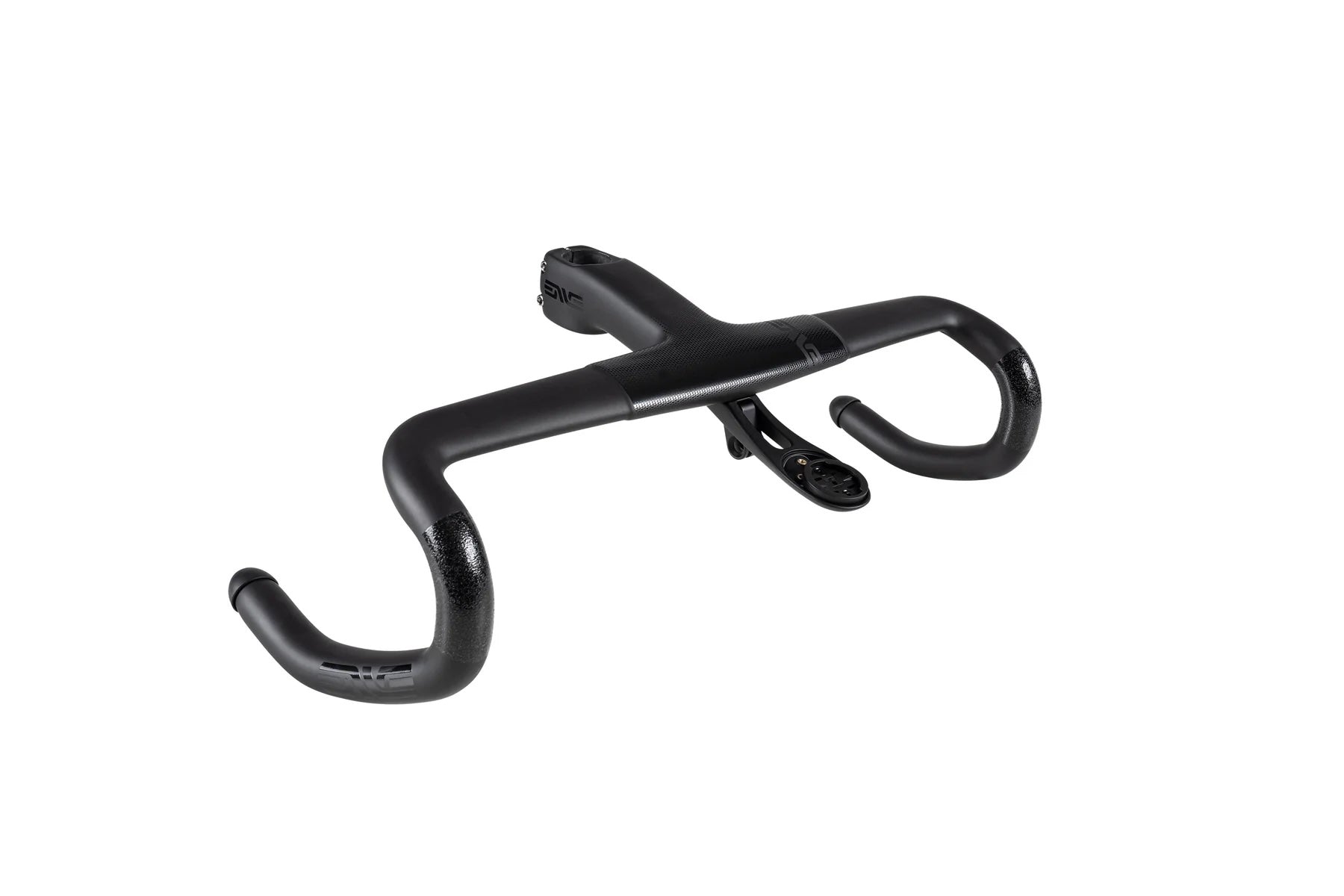

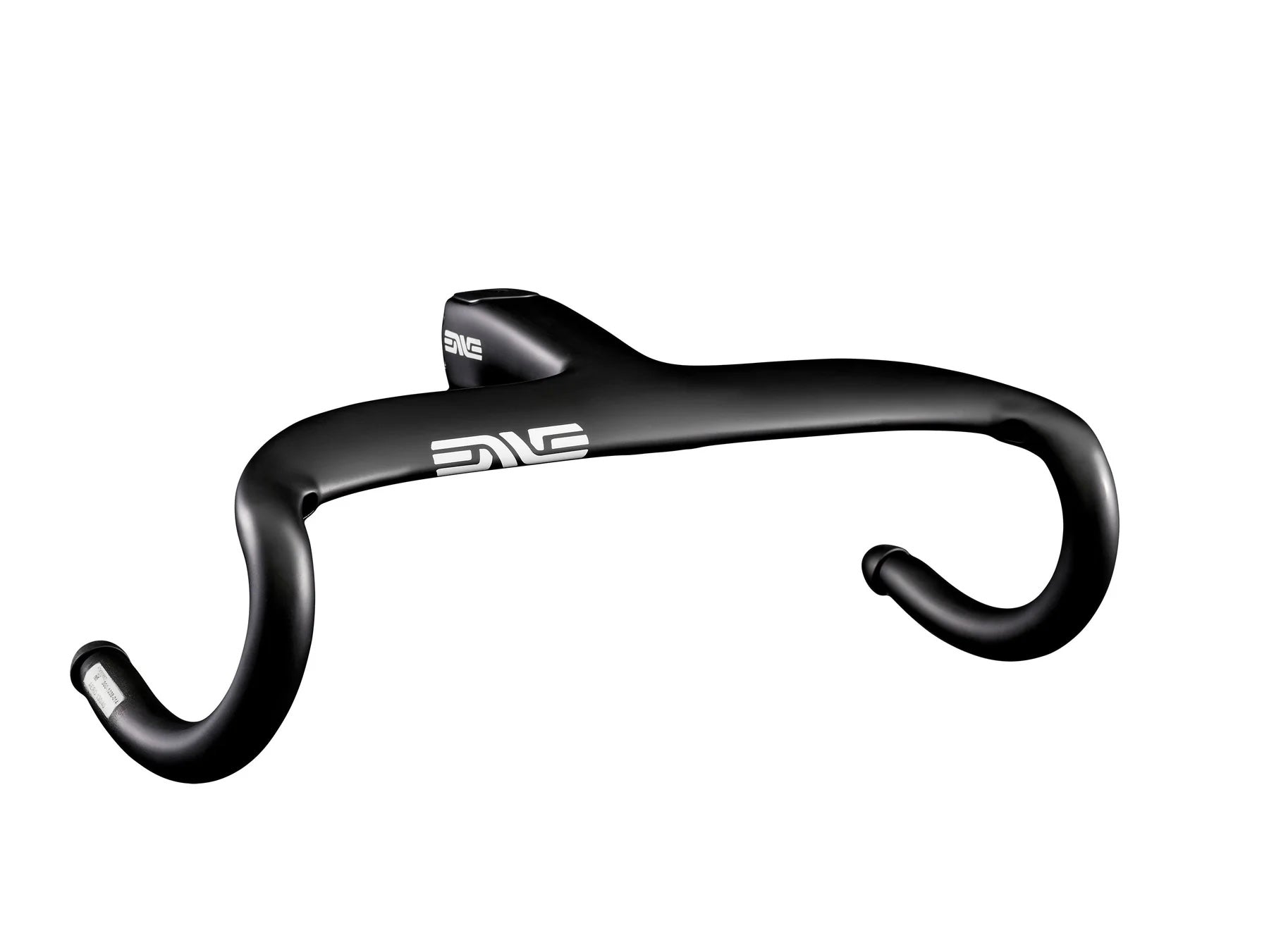

      ENVE Handlebar & Stem
      ENVE SES AR Road carbon handlebar
      Semi-internal routing
      Width (Tops c-to-c) = 38/40/42cm
      Drop = 127mm
      Reach = 76mm
      23.5mm flare
      243-280 grams
      ENVE carbon stem
      Length = 80-120mm
      Stem Angle = -6°
      118-142 grams

      Frame = 1730 grams (Size 56)
      Fork = 480 grams
      Seatpost = 255 grams (300mm) / 275 grams (350mm)

      Rider weight limit = 220 lb / 100 kg

      Builds typically weigh 18 to 22 lbs depending on groupset, wheel, tire, and component choice.

      We independently test to CPSC 1512 and ISO 4210 standards in Southern California and offer a lifetime warranty on titanium frames and seatposts as well as our carbon forks and seatposts, and aluminum frames carry a 5 year warranty against manufacturer defects for the original owner. 3rd party parts are covered under the original manufacturer's warranty.

      Geometry

      Sizing

      We offer 8 sizes to fit you better, from ~ 5'0" to ~ 6'7".

      Take advantage of our Perfect Fit Program for a guaranteed fit.
