Gravel Ti

Name: Gravel Ti
Brand: BlackHeart Bike Company
Price: 3299.0 USD
Availability: InStock

Still waters run deep.

Hidden among the roughest terrain – the bumps, ruts, and rocks – lies a harmony. Each beat of ground turns into a rhythm. As senses sharpen, time slows. A leaf quaking in the wind. Dust suspended in the golden light. A new realm emerges where disorder and calm coexist.

It’s not about the rush, but the serenity in the spaces between each movement. A centering of mind and body that glides like water over rocks downstream.

This is State of Flow

$3,299.00

[{"id":45220006330521,"title":"46","option1":"46","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 46","public_title":"46","options":["46"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006363289,"title":"49","option1":"49","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Gravel Ti - 49","public_title":"49","options":["49"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006396057,"title":"52","option1":"52","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Gravel Ti - 52","public_title":"52","options":["52"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006428825,"title":"54","option1":"54","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 54","public_title":"54","options":["54"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006461593,"title":"56","option1":"56","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 56","public_title":"56","options":["56"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006494361,"title":"58","option1":"58","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 58","public_title":"58","options":["58"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006527129,"title":"60","option1":"60","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 60","public_title":"60","options":["60"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220006559897,"title":"62","option1":"62","option2":null,"option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 62","public_title":"62","options":["62"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":45220010229913,"title":"64","option1":"64","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel Ti - 64","public_title":"64","options":["64"],"price":329900,"weight":3629,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

PREORDER for May 2025

Custom Paint Program

We offer custom fork paint using Cerakote, an ultra-thin, highly durable, heat-cured ceramic paint.
Select from any of the H-Series colors.
Custom paint takes approximately 4 weeks.

Details

Framesets include frame, fork, headset, seatpost, seatpost collar, thru axles, and spare rear derailleur hanger.
Builds using a carbon barstem include a 5NM torque wrench for easy and confident assembly.

Custom Paint

Custom fork paint can be added for $200.
Preview the most popular color combinations below. Click Here to see all available colors.

**Note the renders are an approximation. You are encouraged to Google colors to see example pictures and/or order free color swatches to confirm.**

Features

Modern aesthetic

A gently sloping top tube, dropped seat stays, a 3D-printed dropped drive side chain stay, and 47mm tire clearance bring titanium design into the 21st century.

Aero design

Our custom kammtail downtube, dropped seat stays, one-piece carbon cockpit, and fully integrated cables make it slippery where it matters.

Magic ride

Premium 3/2.5 double-butted titanium tubing and dropped, curved seatstays deliver a smooth yet snappy ride.

Future proof

Electronic 2X and Mechanical 1X compatible, threaded T47 bb, a round 31.6mm seatpost, and SRAM UDH means easy maintenance and no proprietary parts to limit your options.

Perfect fit

9 sizes fit you better, from ~5'0" to ~7'0"

2X Build Options

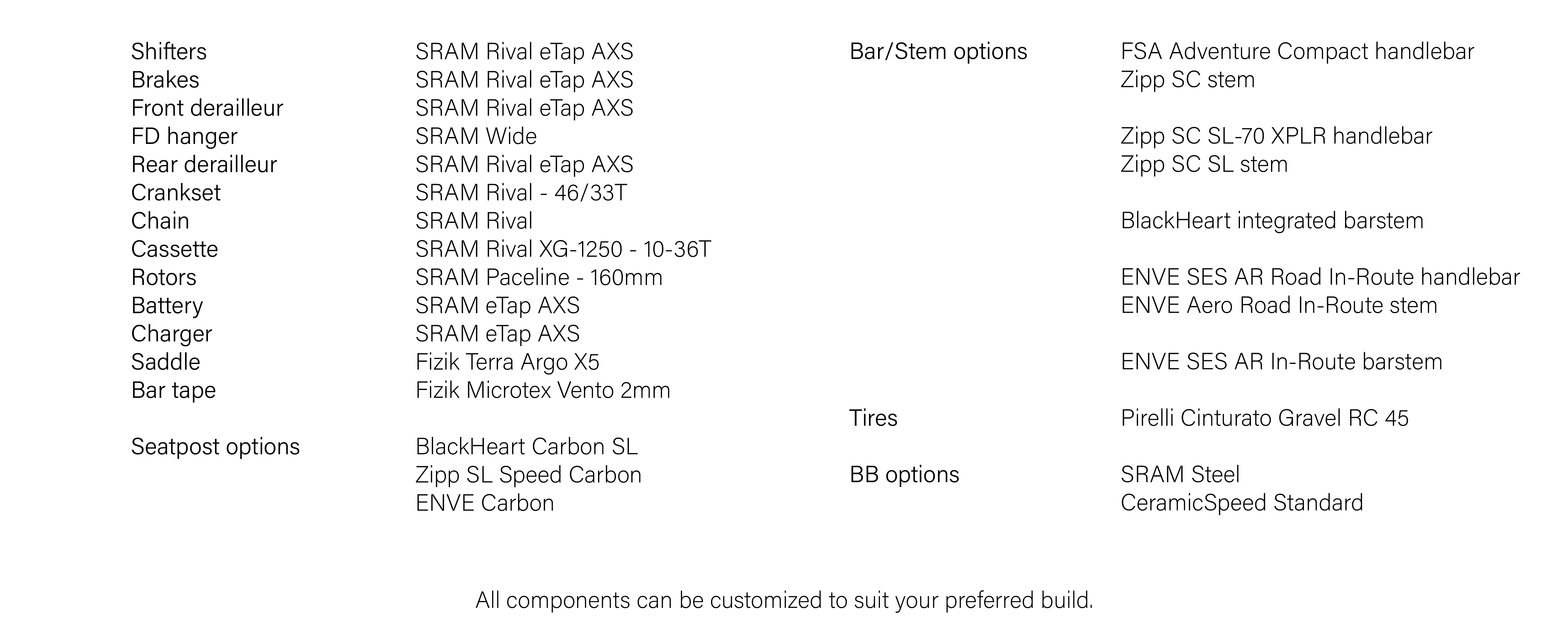

Rival AXS

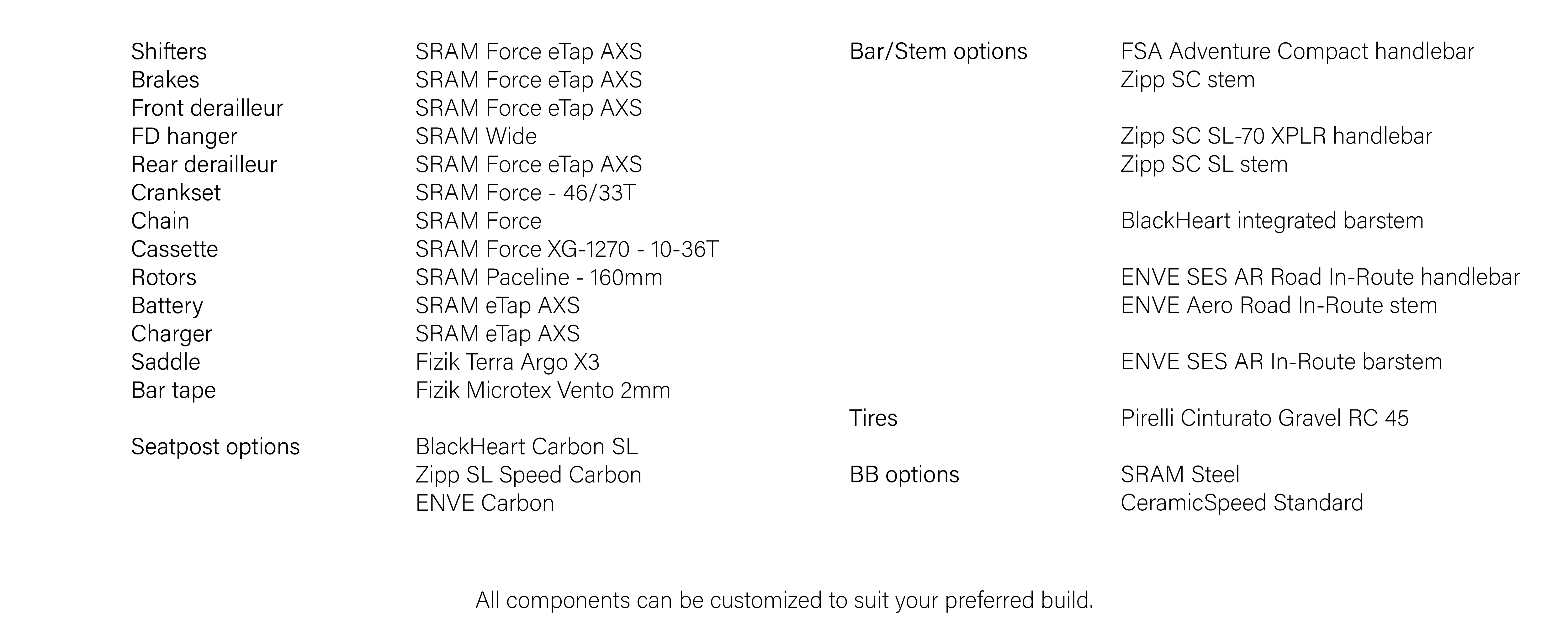

Force AXS

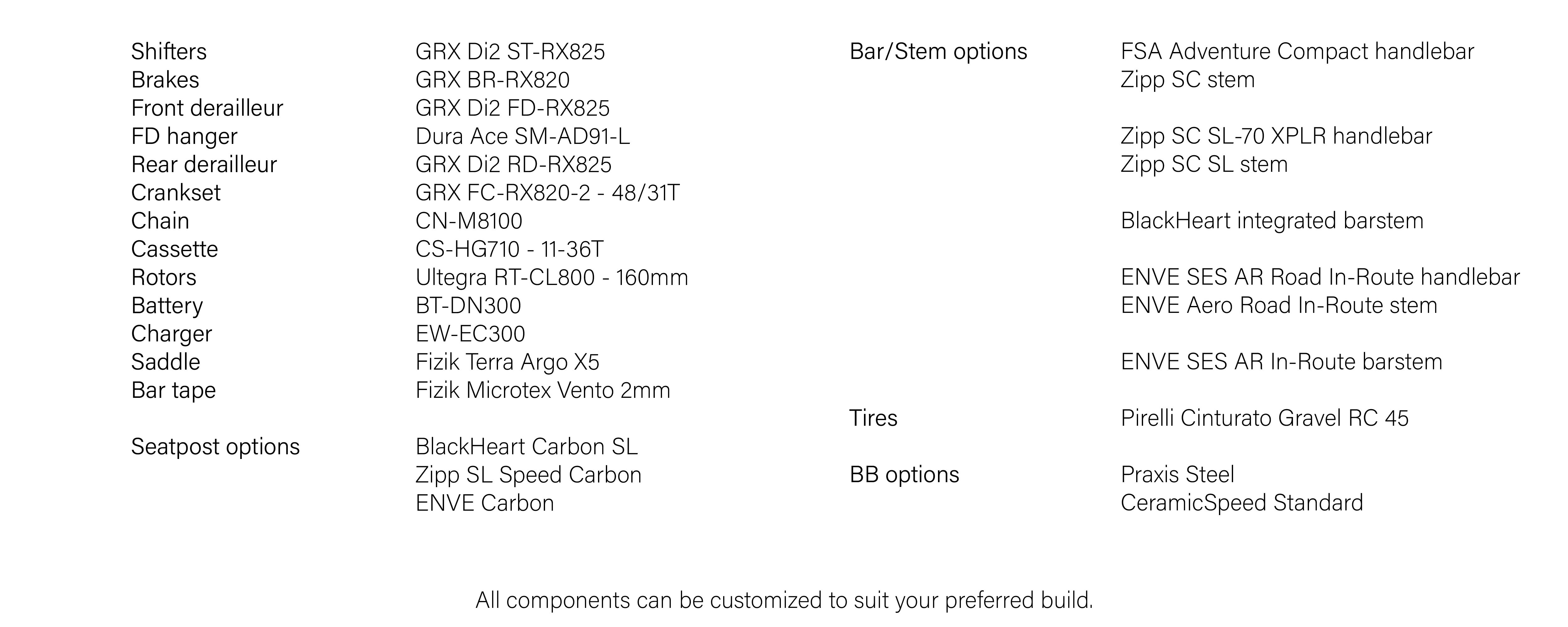

GRX Di2

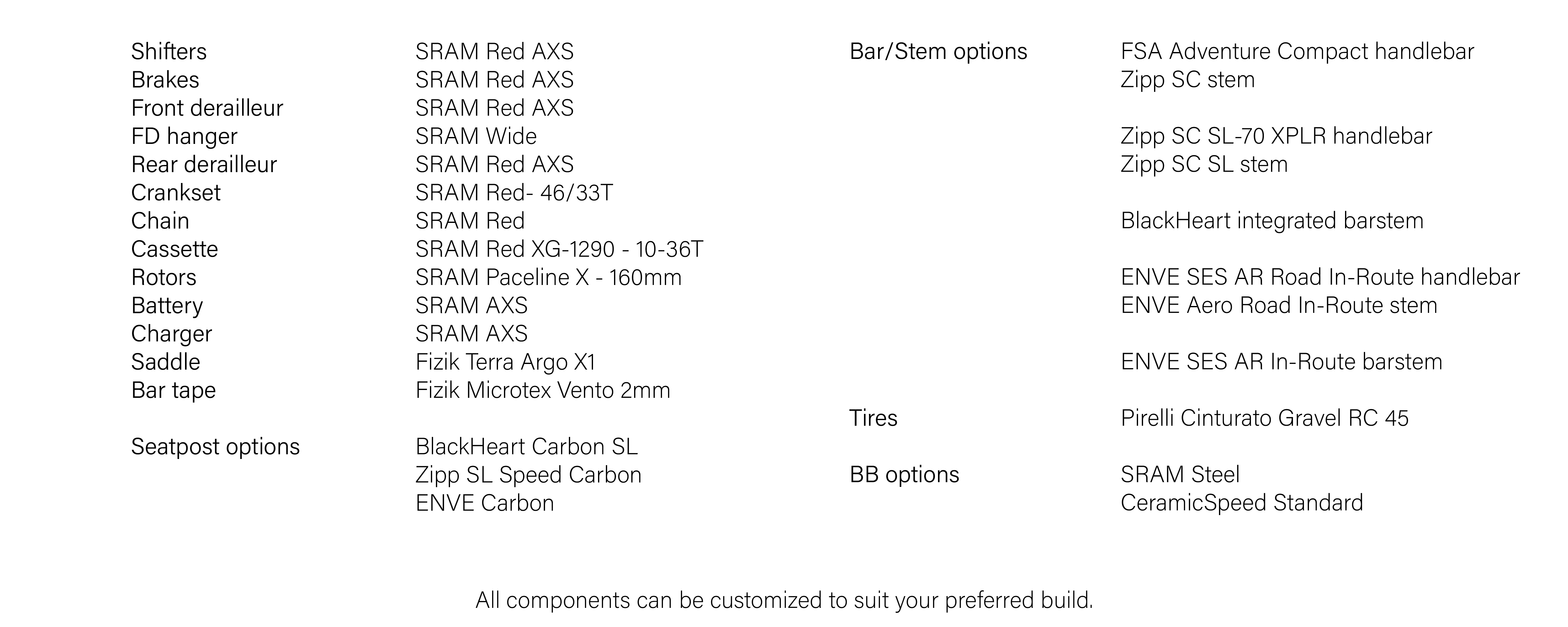

Red AXS

Wheel options

Specs

BlackHeart 3Al-2.5V double butted titanium frame
BlackHeart 3Al-2.5V titanium seatpost clamp
FSA ACR Headset
(ENVE in-route headset with ENVE bar/stem option)
BlackHeart 12mm thru axle
T47-85.5 bottom bracket
1X Electronic or mechanical
2X Electronic only
34.9mm front derailleur hanger size
Max chainring
- 48/31T Shimano
- 46/33T SRAM Wide double
- 48T single
Max 700c tires = 47mm (frame) / 50mm (fork)
650b not recommended

Enve Gravel In-Route Carbon
Max 700c tires = 50mm (fork) / 47mm (frame)
55/53 mm offset
395mm axle to crown
Enve thru axle
520 grams

BlackHeart TiDual-bolt clamp design
Round and oval rail compatability
31.6mm diameter
10mm offset
350mm length
275 grams

BlackHeart Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
225 grams

Zipp SL Speed Carbon
Infinite angle clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
204 grams

ENVE Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
204 grams

FSA
FSA Adventure Compact alloy handlebar
External routing
Width (Tops c-to-c) = 40/42/44cm
Drop = 125mm
Reach = 80mm
12 degree flare
Zipp Service Course SL stem
Length = 80-120mm
Stem Angle = -6°
135 grams

Zipp
Zipp ZL-70 XPLR alloy handlebar
External routing
Width (Tops c-to-c) = 40/42/44cm
Drop = 115mm
Reach = 70mm
5 degree flare / 11 degree outsweep
260 grams
Zipp Service Course SL stem
Length = 80-120mm
Stem Angle = -6°
135 grams

BlackHeart
BlackHeart integrated carbon barstem
Fully internal routing
Dust cap and spacers included
Computer mount included
Width (Tops c-to-c) = 38/40/42cm
Length = 80-120mm
Drop = 127mm
Reach = 77mm
Stem Angle = -10°
375-400 grams

ENVE Handlebar & Stem
ENVE SES AR Road carbon handlebar
Semi-internal routing
Width (Tops c-to-c) = 38/40/42cm
Drop = 127mm
Reach = 76mm
23.5mm flare
243-280 grams
ENVE carbon stem
Length = 80-120mm
Stem Angle = -6°
118-142 grams

Frame = 1990 grams (Size 56)
Fork = 520 grams
Seatpost = 255 grams (300mm) / 275 grams (350mm)

Rider weight limit = 275 lb / 125 kg

Builds typically weigh 18 to 22 lbs depending on groupset, wheel, tire, and component choice.

We independently test to CPSC 1512 and ISO 4210 standards in Southern California and offer a lifetime warranty on titanium frames and seatposts as well as our carbon forks and seatposts, and aluminum frames carry a 5 year warranty against manufacturer defects for the original owner. 3rd party parts are covered under the original manufacturer's warranty.

Geometry

Sizing

We offer 9 sizes to fit you better, from ~ 5'0" to ~ 7'0".

Take advantage of our Perfect Fit Program for a guaranteed fit.
