Allroad Ti
Allroad Ti
Connection to Sense
We’ve all experienced love at first ride. Maybe you were just a kid, and you’d never experienced freedom quite like this. Your house becoming a small spec behind you. The road becoming a blur. It’s like you were seeing the world in color for the very first time.
This is a story about that forgotten feeling. Where wind & whim are your only guide. Where competition & comparison are left at the door, and where the only things that matter are the sun, the clouds and the whoosh of the trees.
This is Connection to Sense

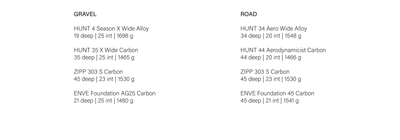

Wheel Options
H-314 Crushed Orchid
Custom paint
stock fork
Custom paint
Custom paint
Video
Features
Two bikes in one
One bike that looks like a road bike, handles like a road bike, while having the capability of a gravel bike – simply by switching wheels.
Timeless design
With a clean, classic aesthetic and perfect proportions this bike will never go out of style.
Magic ride
Double-butted titanium tubing combined with curved seatstays delivers a smooth yet snappy ride.
Forever material
Titanium is more durable than carbon fiber, will never rust or corrode, and is highly recycleable if the time comes.
Future proof
Simple mechanical routing, electronic compatible, threaded bb, and a round 31.6mm seatpost means easy maintenance and no proprietary parts to limit your options.
The perfect fit
9 sizes fit you better, from ~5'0" to ~7'0"
Specs
BlackHeart 3Al-2.5V double butted titanium frame
BlackHeart 3Al-2.5V titanium seatpost clamp
Wolf Tooth Premium IS42/IS52 headset
Wolf Tooth 12mm (1.75 x 174mm) thru axle
Di2 ready
Third water bottle cage mount
34.9mm front derailleur hanger size
Max chainring 50/35 double, 44 single
Max 700c tires = 40mm
Max 650b tires = 50mm
Sizes 46, 49, 60, and 62 are V2 frames.
- 2022 branding
- BSA threaded bottom bracket
Sizes 52, 54, 56, and 58 are V3 frames.
- 2023 branding
- T47-68 threaded bottom bracket
- Rear fender mounts on dropouts
Size 64 due Nov 2023.
BlackHeart carbon fiber fork
47mm offset
400mm axle to crown
Wolf Tooth 12mm (1.5 x 118.5mm) thru axle
BlackHeart 3Al-2.5V titanium seatpost
Dual-bolt clamp design
31.6mm diameter
10mm offset
Frame = 1785 grams (Size 54)
Fork = 480 grams
Seatpost = 275 grams (300mm) / 300 grams (350mm)
Rider weight limit = 265 lb / 120 kg
Builds typically weigh 18 to 22 lbs depending on groupset, wheel, tire, and component choice.
We independently test to CPSC 1512 and ISO 4210 standards in Southern California and offer a lifetime warranty on titanium frames and seatposts as well as our carbon forks and seatposts, and aluminum frames carry a 5 year warranty against manufacturer defects for the original owner.
Geometry
Sizing
We offer 9 sizes to fit you better, from ~ 5'0" to ~ 7'0".
For riders in between sizes, it is recommended that women size down and men size up.
Note, BlackHeart sizing is typically one size larger than other brands.
For example, if you ride a size 54 carbon road bike you're likely a BlackHeart size 56.
