Gravel AL

Name: Gravel AL
Brand: BlackHeart Bike Company
Price: 1999.0 USD
Availability: InStock

Exploration lives in all of us. A basic human need that’s pushed us forward long before the invention of the wheel. And in a world where every corner has been seemingly documented, posted & shared – we still have an innate desire to find out what’s out there for ourselves.

It's here, somewhere far beyond the end of the pavement, where enlightenment happens. Where your phone stopped working hours ago, shortcuts turn into dead ends, and the only reference point is the horizon line beckoning you over that next hill.

This trip is about the lifelong pursuit to uncover something new – about your environment, your limits, and ultimately yourself.

This is Exploration of Being

$1,999.00

[{"id":43579610595481,"title":"46","option1":"46","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 46","public_title":"46","options":["46"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610661017,"title":"49","option1":"49","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 49","public_title":"49","options":["49"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610726553,"title":"52","option1":"52","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 52","public_title":"52","options":["52"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610792089,"title":"54","option1":"54","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 54","public_title":"54","options":["54"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610857625,"title":"56","option1":"56","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 56","public_title":"56","options":["56"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610923161,"title":"58","option1":"58","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 58","public_title":"58","options":["58"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579610988697,"title":"60","option1":"60","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 60","public_title":"60","options":["60"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43579611054233,"title":"62","option1":"62","option2":null,"option3":null,"sku":null,"requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Gravel AL - 62","public_title":"62","options":["62"],"price":199900,"weight":4082,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}]

PREORDER for June 2024

Full purchase price required to reserve frame.
Orders can not be canceled once custom paint has been completed.

Custom Paint Program

We offer custom paint using Cerakote, an ultra-thin, highly durable, heat-cured ceramic paint.
Select from 137 of the H-Series colors.
Single color frame paint with 2nd logo color is included in the price.
Single color fork paint without logo can be added for $200.

Framesets include frame, fork, headset, seatpost, seatpost collar, thru axles, and spare rear derailleur hanger

Builds include a 5NM torque wrench for easy and confident assembly.

*Power meter upgrade must match groupset selected.

Ride Different

Choose from 137 Cerakote H-Series paint colors for the frame and logos, included in the price.

Learn More

Video

First Look

By Chris Johnston

Watch

Features

2024 Gravel Bike of the Year

"I think I’m now in love with aluminum gravel race bikes." —Dan Chabanov, Bicycling Magazine

Modern aesthetic

A gently sloping top tube and dropped seat stays bring aluminum design into the 21st century.

Aero design

Our custom kammtail downtube, one-piece carbon cockpit, fully integrated cables make it slippery where it matters.

Carbon feel

Premium 7005 double-butted aluminum tubing and curved seatstays deliver a carbon-like ride while being more durable, and is 100% recyclable.

Future proof

Electronic 2X and Mechanical 1X compatible, threaded T47 bb, a round 31.6mm seatpost, and SRAM UDH means easy maintenance and no proprietary parts to limit your options.

Perfect fit

8 sizes fit you better, from ~5'0" to ~6'7"

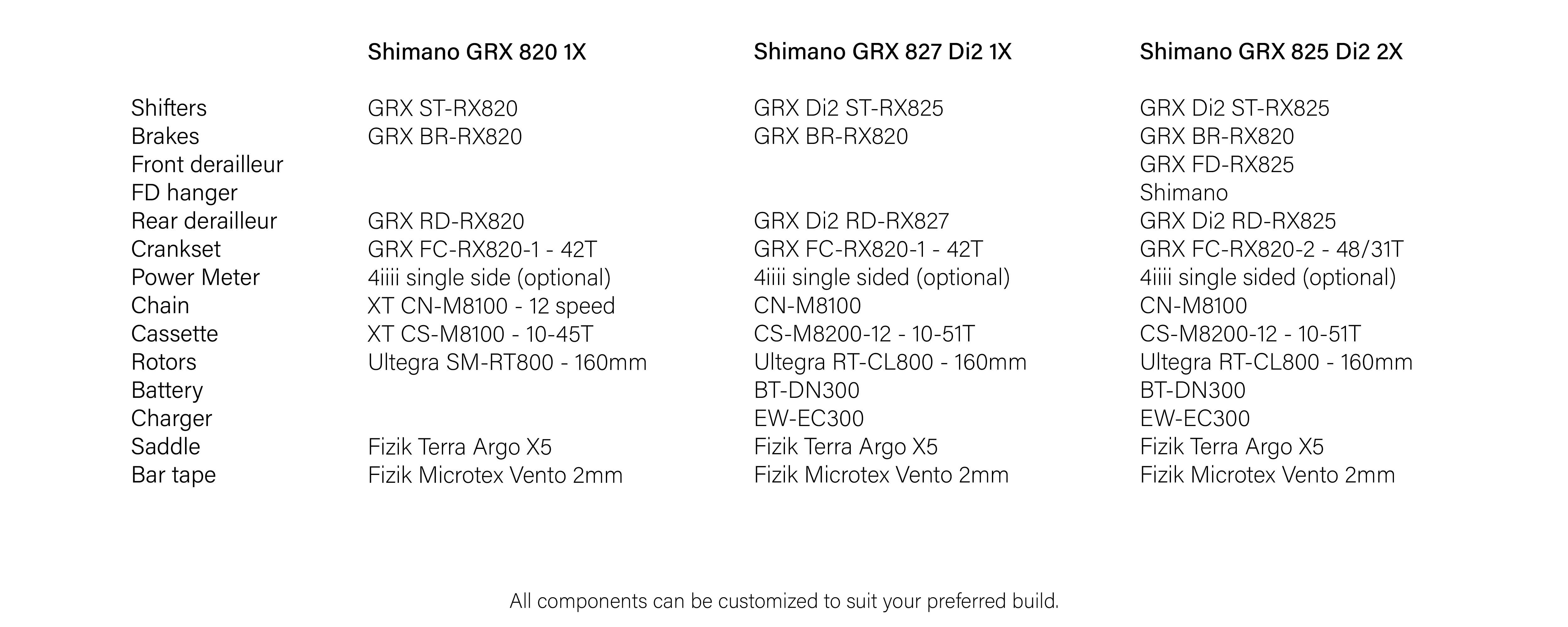

2X Build Options

Rival
Force
GRX Di2

Wheel options

Specs

BlackHeart double butted 7005 aluminum frame
Wolf Tooth seatpost clamp
FSA ACR Headset
(ENVE in-route headset with ENVE bar/stem option)
BlackHeart 12mm (1.5 x 164mm) thru axle
T47-85.5 bottom bracket
1X Electronic or mechanical
2X Electronic only
34.9mm front derailleur hanger size
Max chainring
- 48/31T Shimano
- 46/33T SRAM Wide double
- 48T single
Max 700c tires = 47mm
650b not recommended

Enve Gravel In-Route Carbon
700x50 tire clearance
55/53 mm offset
395mm axle to crown
Enve thru axle
520 grams

BlackHeart Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
225 grams

Zipp SL Speed Carbon
Infinite angle clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
204 grams

ENVE Carbon
Dual-bolt clamp design
Round and oval rail compatibility
31.6mm diameter
0 / 20mm offset
204 grams

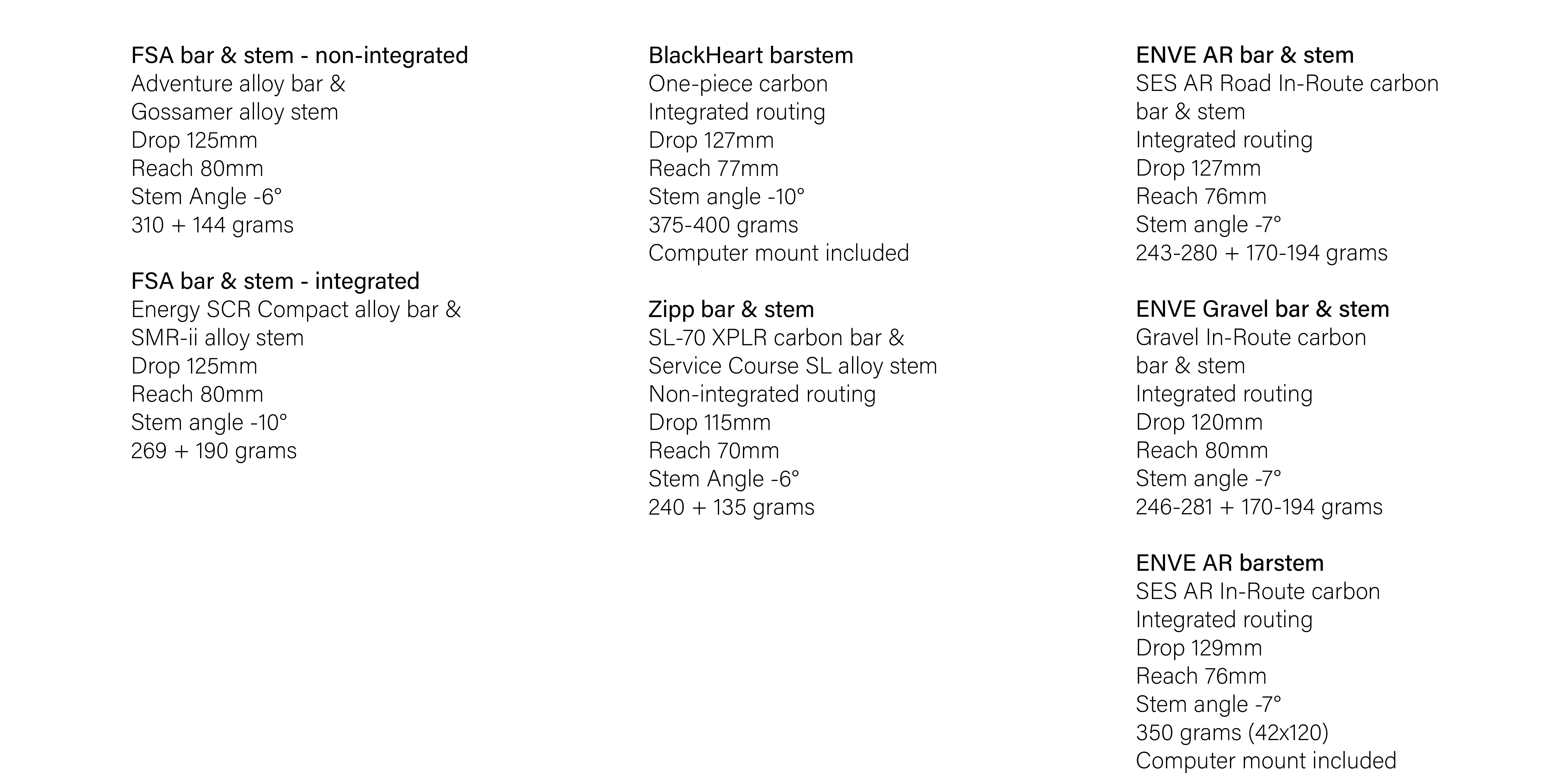

FSA
FSA Adventure Compact alloy handlebar
External routing
Width (Tops c-to-c) = 40/42/44cm
Drop = 125mm
Reach = 80mm
12 degree flare
Zipp Service Course SL stem
Length = 80-120mm
Stem Angle = -6°
135 grams

Zipp
Zipp ZL-70 XPLR alloy handlebar
External routing
Width (Tops c-to-c) = 40/42/44cm
Drop = 115mm
Reach = 70mm
5 degree flare / 11 degree outsweep
260 grams
Zipp Service Course SL stem
Length = 80-120mm
Stem Angle = -6°
135 grams

BlackHeart
BlackHeart integrated carbon barstem
Fully internal routing
Dust cap and spacers included
Computer mount included
Width (Tops c-to-c) = 38/40/42cm
Length = 80-120mm
Drop = 127mm
Reach = 77mm
Stem Angle = -10°
375-400 grams

ENVE Handlebar & Stem
ENVE SES AR Road carbon handlebar
Semi-internal routing
Width (Tops c-to-c) = 38/40/42cm
Drop = 127mm
Reach = 76mm
23.5mm flare
243-280 grams
ENVE carbon stem
Length = 80-120mm
Stem Angle = -6°
118-142 grams

Frame = 1690 grams (Size 56)
Fork = 520 grams
Seatpost = 255 grams (300mm) / 275 grams (350mm)

Rider weight limit = 220 lb / 100 kg

Builds typically weigh 18 to 22 lbs depending on groupset, wheel, tire, and component choice.

We independently test to CPSC 1512 and ISO 4210 standards in Southern California and offer a lifetime warranty on titanium frames and seatposts as well as our carbon forks and seatposts, and aluminum frames carry a 5 year warranty against manufacturer defects for the original owner. 3rd party parts are covered under the original manufacturer's warranty.

Geometry

Sizing

We offer 8 sizes to fit you better, from ~ 5'0" to ~ 6'7".

For riders in between sizes, it is recommended that women size down and men size up.
